Description :

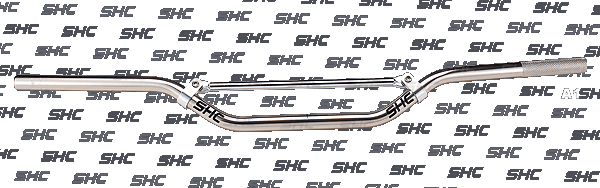

Spazio Mini Handlebars, 22.2mm Standard bar or 28.6mm diameter fat bar.
7075 or 6061 alloy are available.
plain gauge, Single butted or Double butted are optional.
Knurling, sand blasting, polish & colors to order |
|
Application:

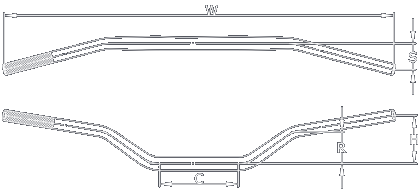

| No. |
Bike |
Width |
Height |
Rise |
Clamp |
Sweep |
| 1 |
110CC Playbike |
765 |
154 |
112 |
190 |
70 |
| 2 |
50CC Playbike |
745 |
185 |
170 |
160 |
40 |
| 3 |
CRF150R Adult |
780 |
138 |
100 |
128 |
42 |
| 4 |
CR80/85 96-08 |
740 |
96 |
85 |
165 |
68 |
| 5 |
CRF150F/230F |
775 |
115 |
81 |
208 |
44 |
| 6 |
CRF150R 07-09 |
740 |
118 |
83 |
175 |
42 |
| 7 |
KX65 02-09 |
740 |
115 |
83 |
170 |
53 |
| 8 |
KX80/85/100 98-09 |
732 |
100 |
85 |
185 |
63 |
| 9 |
KTM50SX |
642 |
84 |
65 |
150 |
44 |
| 10 |
KTM65SX |
740 |
115 |
83 |
170 |
53 |
| 11 |
KTM85SX |
775 |
91 |
58 |
193 |
56 |
| 12 |
Mini-Hi |
797 |
132 |
112 |
170 |
63 |
| 13 |
RC Mini / 85CC |
740 |
118 |
83 |
175 |
42 |
| 14 |
RM85 02-09 |
735 |
90 |
70 |
175 |
69 |
|
|
|
Description :

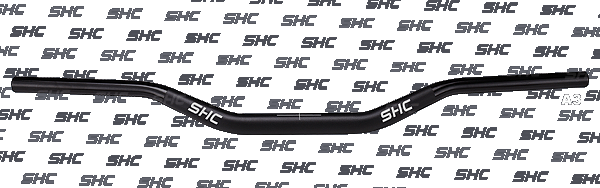

Spazio ATV Handlebars, 22.2mm Standard bar or 28.6mm diameter fat bar.
7075 or 6061 alloy are available.
plain gauge, Single butted or Double butted are optional.
Knurling, sand blasting, polish & colors to order |
|
Application:
| No. |
Bike |
Width |
Height |
Rise |
Clamp |
Sweep |
| 1 |
ATV Race |
806 |
150 |
95 |
205 |
75 |
| 2 |
Honda TRX250R ( Fourtrax ) |
770 |
150 |
120 |
200 |
98 |
| 3 |
Honda TRX400EX / X99-09' |
790 |
142 |
105 |
200 |
90 |
| 4 |
Special quad |
770 |
120 |
115 |
180 |
92 |
| 5 |
Suzuki LT-R450 06-09 |
804 |
89 |
79 |
100 |
82 |
| 6 |
Suzuki Quad Racer |
770 |
120 |
115 |
180 |
92 |
| 7 |
Yamaha Raptor 700R 06-09 |
790 |
141 |
112 |
125 |
90 |
| 8 |
Yamaha Raptor YFM 660 01-05 |
785 |
140 |
105 |
155 |
100 |
| 9 |
Yamaha Banshee YFZ350 |
775 |
150 |
120 |
190 |
100 |
| 10 |
Yamaha YFZ450 04-05 |
773 |
110 |
87 |
175 |
97 |
| 11 |
Yamaha YFZ450 06' |
780 |
106 |
69 |
110 |
88 |
Remark: Application, Size, Dimension to be reconfirmed by buyers. |
|
| |
|
