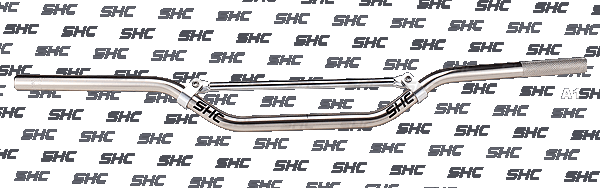

Spazio MX Handlebars, 22.2mm Standard tubing, Crossbar available, 7075 or 6061 alloy
Plain gauge, Single butted or Double butted are optional.
Knurling, sand blasting, polish & colors to order
Application:

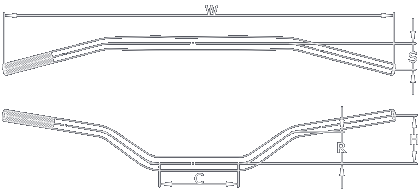

No.
Bike
Width
Height
Rise
Clamp
Sweep
1
110CC Playbike
765
154
112
190
70
2
50CC Playbike
745
185
170
160
40
3
CRF150R Adult
780
138
100
128
42
4
CR80/85 96-08
740
96
85
165
68
5
CRF150F/230F
775
115
81
208
44
6
CRF150R 07-09
740
118
83
175
42
7
KX65 02-09
740
115
83
170
53
8
KX80/85/100 98-09
732
100
85
185
63
9
KTM50SX
642
84
65
150
44
10
KTM65SX
740
115
83
170
53
11
KTM85SX
775
91
58
193
56
12
Mini-Hi
797
132
112
170
63
13
RC Mini / 85CC
740
118
83
175
42
14
RM85 02-09
735
90
70
175
69
Remark:Application, Size, Dimension to be reconfirmed by buyers.
